Αρχική Σελίδα /Προϊόντα/Ψηφιακός μετατροπέας ισχύος/Water Pump Vector Control 50HZ 60HZ 7.5kw 15kw 22 kW 220v 380v Variable Frequency Inverters VFD Drives

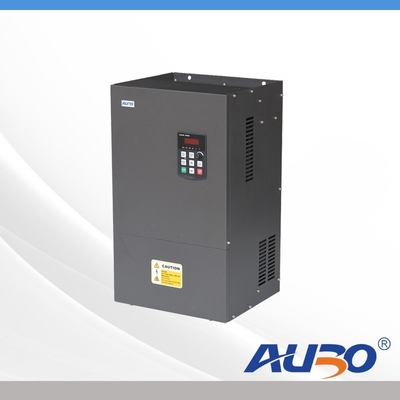

Water Pump Vector Control 50HZ 60HZ 7.5kw 15kw 22 kW 220v 380v Variable Frequency Inverters VFD Drives

1 Unit
MOQ
Water Pump Vector Control 50HZ 60HZ 7.5kw 15kw 22 kW 220v 380v Variable Frequency Inverters VFD Drives
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: AVF508
Output Power: 0.75kw to 400kw
Input Voltage: 380/220VAC±15%
Output Voltage: 0~rated input voltage
Type: variable frequency drives, Triple
Output Type: Triple
Output Current: Load
Output Frequency: 0~600 Hz
Size: 302*150*183(mm)~1100*1120*355(mm)
Weight: 3KG~300KG
Product name: variable frequency drives
Protection: Overload,short circuit,over voltage,etc.
Application: Water Pump,Fan
Display: LED Display
Item: 3phase to 3phase
Output wave form: Quasi Sine Wave
Control mode: Open Loop Vector Control(SVC)
Certificate: CE ISO9001
warranty: 12 months
Βασικές πληροφορίες
Πιστοποίηση: CE ISO9001
Model Number: AVF508
Πληρωμής & Αποστολής Όροι
Packaging Details: vfd carton packing;wooden box packing;Buffer foam cushioning
Supply Ability: 3000 Unit/Units per Month
Περιγραφή προϊόντων

<h2>Vector Control 50HZ 60HZ 7.5kw 15kw 22 kw 220v 380v Variable frequency inverters VFD drives</h2>

Company Information

Nanjing Aubo Electric Co. Ltd, simply as Aubo, is specialized in producing variable speed motor drive (VFD ac inverter ) and soft starter,for both medium and low voltage , as well as simple PLC and motor protector. Aubo deals with both product trading and engineering solution. It also distributes VACON inverter from Finland, and AuCom soft starter from New Zealand.

Aubo has a factory in Nanjing and sales offices across the country, while the international customers are to be looked after by its Shanghai office.

WHY CHOOSE US

• 15 Years - we are professional manufacturer of frequency converter for 15 years.
• 15 Years - We have 10 years’ experience of OEM and ODM.
• 8 Patents - We got 8 patents in the electrical industry.
• 100% & 12H - We guarantee 100% in 12 hours reply to our customers.
• Our Honor - We got the title of provincial science and technology enterprises.
• Professional Team - Our engineers have more than 7 years experience in industry.
• Powerful Production Capacity - we can offer a large quality products each month

Product Description

Performance Features &Functions:

Item

Content

input voltage range

220V/380V/400V/415V/440V/600V/690V

input frequency range

47~63 Hz

output voltage

0~ rated input voltage

output frequency

0~600 Hz

Speed ratio

vector control without PG;1:100

Speed control accuracy

+-0.5%u

Control Mode

Vector control without PG,V/F control

Overload Capacity

150% FLC for 60s;180% FLC for 10s

Start Torque

vector control without PG;0.5Hz/150%(SVC)

Carrier Frequency

0.5~15.0kHz

Frequency setpoint options

digital,analog,serial comms,multi-level speed , PID, etc;PID control;

Speed Control Accuracy

vector cotrol without PG ,±0.5% max. speed;

multi-level speed control

8 speed levels

QUICK/JOG

functional quick button to be defined by user freely

voltage auto-tuning

When the power supply viberates, the output voltage is kept constant

automatically

More than 25 protections

Over current, over voltage, under voltage, over temperature, phase loss,

over load, etc.

others

Non-stop during instaneous power off

INTERFACE FEATURES OF VARIABLE FREQUENCY DRIVES:

u Programmable DI:6 inputs;

u Programmable AI:AI1:-10~10V input,AI2:0~10V or 0~20mA input;

u Open Collector Output:1 output;

u Relay Output:1 output;

u Analog Output:1 output,optional ,0~20mA or 0~10V;

Contact Supplier for More Information

Packaging

shipping

We have several transport options for customer to choose:

1, Transport by sea

2, Transport by truck

3, Transport by train

4, Transport by express service

5. Transport by air, (to be confirmed )

Trade term

1.Delivery term: FOB,CFR,CIF, EXW available.

2.Payment term:30% prepayment, 70% before dispatching

3.Production lead-time: 1-2 weeks

4.Shipping lead-time: 4-6 weeks

5.Logistics: best service forwarder with good price, long term partner.

Our Service

1,We can design the job for your specs or your project

2,We provide site commissioning on demand

Certifications
